Heated Snow Melting Mats for Stairs: Sizing, Power, and Cost (2026 Guide)

Heated stair mats can help manage snow on outdoor steps, but a useful setup starts with measurements and electrical planning. Choose a mat that fits each tread, include the correct power connection, and calculate operating cost from the complete system's wattage. The space between mats still needs winter maintenance.

This guide is published by WARMSEAL, which sells SEAL snow melting mats. Product details and the limited HeatTrak comparison were checked on October 15, 2026. The electricity examples are calculations with stated assumptions, not measured performance results.

Choose a mat that fits every tread

Measure the usable width and depth of each outdoor step before choosing a heated mat. The mat needs to lie flat within the intended placement area, with its edges and cords arranged according to the installation instructions. A larger nominal stair width alone does not establish a suitable fit.

Measure from the surfaces that actually limit placement: posts, railings, curved edges, and the next riser. Check the narrowest step separately. For irregular stairs, a simple sketch with dimensions is more useful than counting steps and assuming they all match.

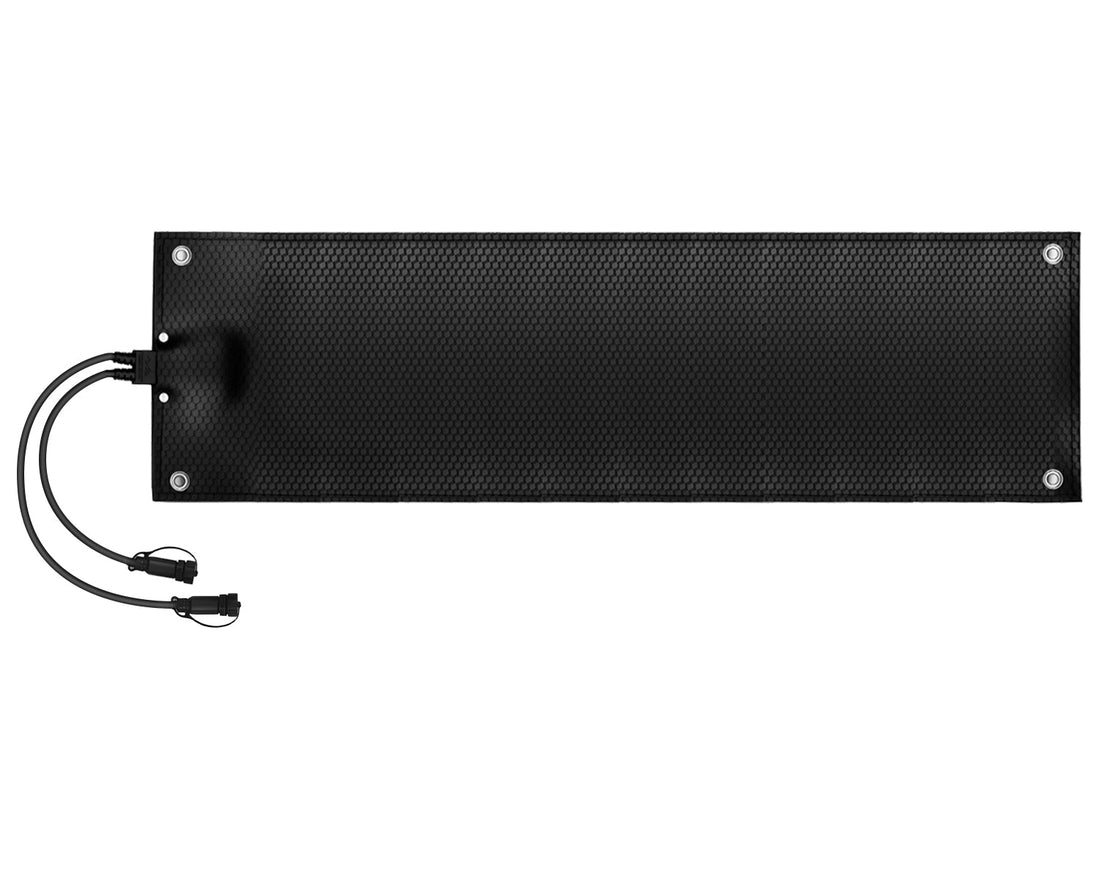

The SEAL heated stair mat measures 11 × 30 inches. On a hypothetical 12-inch-deep, 36-inch-wide tread, subtracting the mat dimensions leaves one inch of depth and six inches of total width. Those figures describe remaining space; they are not prescribed installation clearances.

Do not cut, trim, or fold a heated mat to fit a smaller tread. Check mat thickness and the clearance required for your installation with WARMSEAL before ordering, especially near a door that opens over the placement area.

Plan the landing and walkway separately

A staircase layout should account for the steps, landing, and approach as separate areas. Use a stair mat where its footprint fits a tread, then measure the landing or path for a suitable larger mat. Connecting two mats does not heat the uncovered gap between them or the connecting cable.

Compare the compact entrance mat with the 24 × 60 inch walkway mat using actual measurements. A long mat does not solve a narrow landing, and a landing mat should not bridge several steps.

The Complete Entry Kit includes a 10-foot extension cable. Check current availability before planning around the bundle. The extension is a connection accessory; it adds no heated walking surface.

Check the electrical load before connecting mats

The number of mats you can connect depends on their electrical ratings and the permitted load of the complete setup. SEAL specifies a maximum combined load of 13 amps per compatible GFCI power cord. Circuit capacity, other connected equipment, and the product instructions can impose a lower usable limit.

WARMSEAL confirms a current rating of 0.6 A per 11 × 30 inch stair mat. Four of these mats total 2.4 A; six total 3.6 A. Add the ratings of any compatible walkway mats separately. These examples describe the load, not a guaranteed maximum mat count or approval for a particular circuit.

For cost planning, assuming a 120-volt supply and a resistive load with a power factor of 1 gives 120 × 0.6 = approximately 72 W per stair mat. This calculated value is a planning estimate, not a measured power reading or a separately confirmed nameplate wattage. Follow the actual product label and instructions.

Use only compatible SEAL stair and walkway connections. SEAL wheelchair ramp mats operate independently and cannot join that system. A second power cord does not automatically provide a separate circuit: an electrician can confirm which outlets share capacity and whether the planned sustained load is appropriate.

Calculate electricity cost from watts and operating time

Estimate running cost by multiplying total watts divided by 1,000 by operating hours and your electricity rate per kilowatt-hour. For several days, multiply by the number of days as well. Use the ratings of every connected mat, and distinguish time connected to power from time actually drawing full rated power.

Watts describe power; kilowatt-hours describe energy used over time. The U.S. Energy Information Administration explains these units. For a simple full-power estimate, use:

Cost = (total watts ÷ 1,000) × hours per day × days × price per kWh.

The table uses the confirmed 0.6 A per stair mat and the estimated 72 W above. It assumes US$0.17/kWh, continuous heating throughout the stated hours, and 30 operating days. These are stair-mat-only estimates, excluding walkway mats. The electricity rate is an assumption, not a national average.

For one stair mat, 72 ÷ 1,000 × 8 × 30 × 0.17 = US$2.9376, rounded to US$2.94. Daily and monthly figures are rounded independently from unrounded inputs. At the same load and rate, doubling operating hours doubles this estimate.

Use your utility's applicable variable rate, including time-of-use periods where relevant. Fixed service charges are excluded. Weather and any permitted controls affect actual operating time; the table does not assume a thermostat is included or predict how often it will run.

Install carefully and inspect during winter use

Follow the supplied instructions for placement, securing, connections, and operation. Keep mats flat and route cords away from walking areas. Inspect the uncovered steps and transitions during use, because a heated mat cannot guarantee that the surrounding route stays clear or that every storm produces the same melting performance.

A practical setup sequence is:

1. Clear debris and check the measured placement areas.
2. Position each mat flat and secure it only as instructed.
3. Confirm the combined load, then assemble compatible connections as directed.
4. Connect the specified GFCI cord to a suitable protected outlet and inspect the complete route.

The Consumer Product Safety Commission advises using GFCI protection, avoiding overloaded outlets, and replacing damaged cords. An outdoor extension cord must be labeled for outdoor use; that label alone does not establish suitability for a particular mat system. Do not substitute a general-purpose extension cord for the specified connection cable unless the product instructions expressly permit it. Follow the requirements for cable type, length, and connections.

The SEAL connector's IP67 rating applies to the connector, not the entire mat. Confirm compatibility with your particular wood, coating, or composite tread before installation. Do not transfer another manufacturer's surface guidance to this product.

Snowfall, temperature, and site conditions affect results. Inspect edges and places where meltwater travels, and maintain uncovered areas. No universal minutes-to-clear figure is provided here.

Compare SEAL and HeatTrak on documented specifications

Compare the exact mat size and power accessories before comparing complete system prices. SEAL and HeatTrak offer different stair-mat dimensions and purchasing arrangements. The table combines public listings with WARMSEAL's confirmed current rating as of October 15, 2026; it does not establish faster melting or lower energy use.

Sources: SEAL stair mat listing, WARMSEAL's direct confirmation of 0.6 A on October 15, 2026, and HeatTrak's official HR10-30 listing, checked October 15, 2026.

The one-inch difference in listed depth may matter on a shallow tread. Check the footprint against every step rather than choosing by brand alone. Compare the cost of all required mats, power accessories, and any permitted extensions at checkout. Each warranty's terms also matter; a shared duration does not mean identical coverage.

Check the complete order before buying

Before buying, match your measured layout to the selected variants and confirm the electrical ratings needed for that layout. Check whether a power cord is included, how the mats will connect, and whether the intended surfaces are suitable. Review return terms before installing or using the mats at home.

For a new SEAL setup, Mat Only requires a compatible power cord or an existing compatible system with sufficient capacity. The Mat With GFCI Cord option includes the cord. Buying several mats does not itself establish that one cord can power them all.

Make a short shopping list with a separate entry for each tread, landing, and walkway section. Record the variant, dimensions, label watts or amps, and required accessories beside each item. This makes omissions and incompatible combinations easier to identify before placing the order.

SEAL snow melting mats have a 2-year limited warranty. Returns and warranty claims are separate; consult the current returns and refund policy for the applicable conditions. If fit or electrical information remains unresolved, send the measurements and intended layout to WARMSEAL before selecting quantities.

Key takeaways

Choose heated stair mats by the dimensions of your actual steps, then plan the complete power connection and operating budget. A useful system combines suitable coverage with compatible equipment and ongoing attention to exposed areas. The three decisions below provide a practical starting point for comparing options and preparing an order.

• Measure every placement area. Match tread, landing, and walkway dimensions; do not cut or fold a heated mat to fit.
• Calculate the complete load. Use actual label ratings and respect both the compatible cord limit and the available circuit capacity.
• Budget with explicit assumptions. Apply your own electricity rate and operating hours; calculated wattages are not measured power readings or confirmed nameplate specifications.
